PERAR

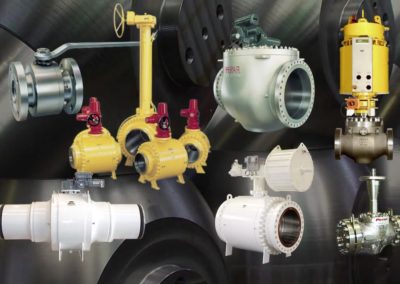

Perar is a leading Italian manufacturer of API6D and API6A Ball Valves for a wide variety of applications in various sectors like Oil, Gas, Petrochemical, On/Off Shore, Heavy Chemicals, etc.
PERAR’s production includes Ball Valves in sizes from 1/2″ to 60″, ANSI classes 150lbs to 2500lbs API6D & API6A and API 2000 to API 20000 in Carbon Steel, Stainless Steel, Duplex Steel, Super Duplex Steel, Alloy Steel, Incoloy-Monel, 6Mo, Titanium, etc.
The construction available are: Floating Type, Trunnion Mounted Side Entry, Trunnion Mounted Top Entry, Metal Seated, Sub-sea and Cryogenic, Bolted and Fully Welded Body.
A comprehensive Quality Assurance program in accordance with APIQ1 and ISO 9001 certified processes guides the internal organisation starting from order entry to the On Time delivery of the valves, together with required documentation and product certification,throughout the following steps:
Engineering, Design, Material Selection, Production, Testing, Delivery/Assistance.
Products
Ball Valves
Floating Ball Valves

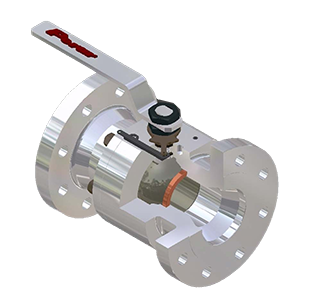

Standard Model FC
Standard Model FC:
2/ 3 pieces bolted body design.
API 6D, ISO 17292 design.
Full Bore and Reduced Bore design.
Flanged, Welding, Threaded Ends.
Anti blow‐out stem.
Anti static device.
Fire safe design.
Size: ½» to 6»
Pressure classes: ASME 150# to 2500#
Temperature range: -196C to 200C
Model FA
Model FA:
2/ 3 pieces threaded body.
ISO 17292 design.
Full Bore and Reduced Bore design.
Welding, Threaded Ends.
Anti blow‐out stem.
Anti static design.
Fire safe design.
Size: 1/4” to 4”
Pressure Classes: ASME 150# to 600#
ISO 17292 800#
3000, 6000 psi
Temperature Range: ‐196°C to 200°C
Model FI
Model FI:
3 pieces bolted body design with swing‐out body.
API 6D, ISO 17292 design.
Full Bore and Reduced Bore design.
Welding, Threaded Ends.
Anti blow‐out stem .
Anti static device.
Fire safe design.
Size: 1/2” to 2”
Pressure Classes: ASME 150# to 2500#
Temperature Range: ‐196°C to 200°C
Model TF (Top Entry)
Model TF (Top Entry)
1 piece bolted bonnet design.
Full in-line maintenance.
API 6D, ISO 17292 design.
Full Bore and Reduced Bore design.
Flanged, Welding, Threaded Ends.
Anti blow‐out stem.
Anti static device.
Fire safe design.
Size: 1/2” to 8”
Pressure Classes: ASME 150# to 1500#
Temperature Range: ‐196°C to 400°C
Compact Ball Valves
Standard Model
Standard Model:
API6A design.
Bi-directional sealing.
Spring loaded metal-to-metal seats.
End flange connection directly to the valve body.
Valve stem retained by shoulder on the body as anti-blow out design.
End flanges sized to withstand bending load up to 100% of pipe yield at full working pressure.
Fire testing to ISO 10497.
Compact design to save between 50% and 70% of valve weight if compared to standard ANSI valves.
Pressure Classes: 3750 psi
Size: 2” to 14”
Size: 16” to 30” Available on request (to be engineered)
Pressure Classes: 6250psi
Size: 2” to 12”
Size: 14” to 24” Available on request (to be engineered)
Pressure Classes: 10000psi
Size: 2” to 12” Available on request (to be engineered)
Compact Swing Check Model
Compact Swing Check Model:
API6A design.
Full opening design with optimized body profile to reduce flow turbulence
Spring loaded clapper.
Clapper-stem arrangement completely assembled inside the pressure boundary eliminating external leak path.
End flange connection directly to the valve body.
End flanges sized to withstand bending load up to 100% of pipe yield at full working pressure.
Fire testing to API6FD.
Compact design to save between 60% and 75% of valve weight if compared to standard ANSI valves.
Renewable seat.
3750 psi
Size: 2” to 14” ( Standard design)
Size: 16” to 24” (Available on request)
6250 psi
Size: 2” to 12” ( Standard design)
Size: 14” to 24” (Available on request)
10000 psi
Size: 2” to 12” ( Standard design)
15000 psi
Size: 2” to 8” (Available on request)
Split Body Side Entry Ball Valve
Standard Model
Standard Model:
API 6D, API 6A design.
Full Bore and Reduced Bore design.
Flanged or Welding Ends.
Spring loaded floating seats.
Bi‐directional sealing.
Anti blow‐out stem.
Anti static device.
Heavy duty bearings.
Double Block & Bleed design.
Fire safe design.
Size: 1/2” to 68»
Pressure Classes:
ASME 150# to 2500#
API 6A 3000 to 15000
Temperature Range: ‐196°C to 400°C
Split Body Side Entry Ball Valve
Standard Model
Standard Model:
API 6D, API 6A design.
Full Bore and Reduced Bore design.
Flanged or Welding Ends.
Spring loaded floating seats.
Bi‐directional sealing.
Anti blow‐out stem.
Anti static device.
Heavy duty bearings.
Double Block & Bleed design.
Fire safe design.
Size: 1/2” to 68»
Pressure Classes:
ASME 150# to 2500#
API 6A 3000 to 15000
Temperature Range: ‐196°C to 400°C
Fully Welded Body Trunnion
Mounted Side Entry Ball Valve
Standard Model
Standard Model:
API 6D, API 6A design.
Full Bore and Reduced Bore design.
Flanged or Welding Ends.
Spring loaded floating seats.
Bi‐directional sealing.
Anti blow‐out stem.
Anti static device.
Heavy duty bearings.
Double Block & Bleed design.
Fire safe design
Size: 1/2” to 68”
Pressure Classes: ASME 150# to 2500#
Temperature Range: ‐196°C to 400°C
Top Entry Ball Valve
About
API6DSS, API6A, API17D design as requested.
Bi-directional sealing.
Spring loaded metal-to-metal seats (tungsten carbide coating 0,2 mm – 0,4 mm thickness).
Anti-blow out design stem.
Non-elastomeric seals to avoid the risk of gradual degradation of the seals over their lifetime.
Full metal-to-metal sealing at body-bonnet and valve stem.
Forged material to comply with API6A PSL3.
Valve actuation with dedicated hydraulic actuator and ROV operable Gearbox (fixed or retrievable).
Forged Body (PSL3-PSL4)
Forged Body (PSL3-PSL4)
Pressure Classes: 3000 psi /900-1500 lbs
Size: 1/2” to 36”
Pressure Classes: 5000 psi / 2500 lbs
Size: 1/2” to 30”
Pressure Classes: 7500 psi
Size: 1/2” to 22”
Pressure Classes: 10000 psi
Size: 1/2” to 9”
Pressure Classes: 15000 psi
Size: 1/2” to 9”
Cast Body (PSL2)
Cast Body (PSL2)
Pressure Classes: 3000 psi /900-1500 lbs
Size: 4” to 48”
Pressure Classes: 5000 psi / 2500 lbs
Size: 4” to 30”
Pressure Classes: 7500 psi
Size: 4” to 22”
Pressure Classes: 10000 psi
Size: 4” to 9”
Top Entry Ball Valve
About
API6DSS, API6A, API17D design as requested.
Bi-directional sealing.
Spring loaded metal-to-metal seats (tungsten carbide coating 0,2 mm – 0,4 mm thickness).
Anti-blow out design stem.
Non-elastomeric seals to avoid the risk of gradual degradation of the seals over their lifetime.
Full metal-to-metal sealing at body-bonnet and valve stem.
Forged material to comply with API6A PSL3.
Valve actuation with dedicated hydraulic actuator and ROV operable Gearbox (fixed or retrievable).
Forged Body (PSL3-PSL4)
Forged Body (PSL3-PSL4)
Pressure Classes: 3000 psi /900-1500 lbs
Size: 1/2” to 36”
Pressure Classes: 5000 psi / 2500 lbs
Size: 1/2” to 30”
Pressure Classes: 7500 psi
Size: 1/2” to 22”
Pressure Classes: 10000 psi
Size: 1/2” to 9”
Pressure Classes: 15000 psi
Size: 1/2” to 9”
Cast Body (PSL2)
Cast Body (PSL2)
Pressure Classes: 3000 psi /900-1500 lbs
Size: 4” to 48”
Pressure Classes: 5000 psi / 2500 lbs
Size: 4” to 30”
Pressure Classes: 7500 psi
Size: 4” to 22”
Pressure Classes: 10000 psi
Size: 4” to 9”
Cryogenic Ball Valves
Standard Model
Standard Model:
API 6D, API 6A design
Full Bore and Reduced Bore design.
Flanged or Welding Ends.
Spring loaded floating seats.
Bi‐directional sealing.
Anti blow‐out stem.
Anti static device.
Heavy duty bearings.
Double Block & Bleed design.
Fire safe design.
Low temperature carbon steel, stainless steel.
Size: 1/2″ to 60″
Pressure Classes: ANSI 150-300-600-900-1500-2500
API 2000-3000-5000-10000-15000
Three Way Ball Valves
Standard Model
API6D, ASME B16.34 or API6A design.
Spring loaded metal-to-metal seats.
Anti blow-out design.
Flow plans for T and L ports.
Fire testing to API6FA.
Pressure Classes: 3750 psi
Size (Standard design): 2” 2 ½” 3” 4” 5” 6” 8” 10” 12” 14” 16”-24”
Size (Available on request): 16”-24”
Pressure Classes: 6250 psi
Size (Standard design): 2” 2 ½” 3” 4” 5” 6” 8” 10” 12”
Size (Available on request): 14” 16”-24”
Pressure Classes: 10000 psi
Size (Standard design): 2” 2 ½” 3” 4” 5” 6” 8” 10” 12”
Pressure Classes: 15000 psi
Size (Available on request): 2” 2 ½” 3” 4” 5” 6” 8”
Three Way Ball Valves
Standard Model
API6D, ASME B16.34 or API6A design.
Spring loaded metal-to-metal seats.
Anti blow-out design.
Flow plans for T and L ports.
Fire testing to API6FA.
Pressure Classes: 3750 psi
Size (Standard design): 2” 2 ½” 3” 4” 5” 6” 8” 10” 12” 14” 16”-24”
Size (Available on request): 16”-24”
Pressure Classes: 6250 psi
Size (Standard design): 2” 2 ½” 3” 4” 5” 6” 8” 10” 12”
Size (Available on request): 14” 16”-24”
Pressure Classes: 10000 psi
Size (Standard design): 2” 2 ½” 3” 4” 5” 6” 8” 10” 12”
Pressure Classes: 15000 psi
Size (Available on request): 2” 2 ½” 3” 4” 5” 6” 8”
Subsea Valves
Subsea Top Entry Ball Valves
About
API6DSS, API6A, API17D design as requested.
Bi-directional sealing.
Spring loaded metal-to-metal seats (tungsten carbide coating 0,2 mm – 0,4 mm thickness).
Anti-blow out design stem.
Non-elastomeric seals to avoid the risk of gradual degradation of the seals over their lifetime.
Full metal-to-metal sealing at body-bonnet and valve stem.
Forged material to comply with API6A PSL3.
Valve actuation with dedicated hydraulic actuator and ROV operable Gearbox (fixed or retrievable).
Forged Body (PSL3-PSL4)
Forged Body (PSL3-PSL4)
Pressure Classes: 3000 psi /900-1500 lbs
Size: 1/2” to 36”
Pressure Classes: 5000 psi / 2500 lbs
Size: 1/2” to 30”
Pressure Classes: 7500 psi
Size: 1/2” to 22”
Pressure Classes: 10000 psi
Size: 1/2” to 9”
Pressure Classes: 15000 psi
Size: 1/2” to 9”
Cast Body (PSL2)
Cast Body (PSL2)
Pressure Classes: 3000 psi /900-1500 lbs
Size: 4” to 48”
Pressure Classes: 5000 psi / 2500 lbs
Size: 4” to 30”
Pressure Classes: 7500 psi
Size: 4” to 22”
Pressure Classes: 10000 psi
Size: 4” to 9”
Subsea Side Entry Ball Valves
Standard Model
API6DSS, API6A, API17D design as requested.
Bi-directional sealing.
Spring loaded metal-to-metal seats (tungsten carbide coating 0,2 mm – 0,4 mm thickness).
Anti-blow out design stem.
Non-elastomeric seals to avoid the risk of gradual degradation of the seals over their lifetime.
Full metal-to-metal sealing at any primary pressure boundary including valve stem.
Forged material to comply with API6A PSL3.
Valve actuation with dedicated hydraulic actuator and ROV operable Gearbox (fixed or retrievable).
Pressure Classes: 3000 psi /900-1500 lbs
Size: 1/2” to 48”
Pressure Classes: 5000 psi / 2500 lbs
Size: 1/2” to 30”
Pressure Classes: 7500 psi
Size: 1/2” to 22”
Pressure Classes: 10000 psi
Size: 1/2” to 12”
Pressure Classes: 15000 psi
Size: 1/2” to 12”
Subsea Side Entry Ball Valves
Standard Model
API6DSS, API6A, API17D design as requested.
Bi-directional sealing.
Spring loaded metal-to-metal seats (tungsten carbide coating 0,2 mm – 0,4 mm thickness).
Anti-blow out design stem.
Non-elastomeric seals to avoid the risk of gradual degradation of the seals over their lifetime.
Full metal-to-metal sealing at any primary pressure boundary including valve stem.
Forged material to comply with API6A PSL3.
Valve actuation with dedicated hydraulic actuator and ROV operable Gearbox (fixed or retrievable).
Pressure Classes: 3000 psi /900-1500 lbs
Size: 1/2” to 48”
Pressure Classes: 5000 psi / 2500 lbs
Size: 1/2” to 30”
Pressure Classes: 7500 psi
Size: 1/2” to 22”
Pressure Classes: 10000 psi
Size: 1/2” to 12”
Pressure Classes: 15000 psi
Size: 1/2” to 12”
Subsea Swing Check Valves
About
API6DSS, API6A, API17D design as requested.
Bi-directional pigging.
Metal-to-metal seats (3mm hardfacing with Stellite 6 or Inconel 625).
ROV lock open stem design to keep valve fully open for reverse pigging.
Non-elastomeric seals to avoid the risk of gradual degradation of the seals over their lifetime.
Full metal-to-metal sealing at body-bonnet.
Seat integral to valve body and with slope to engage the seat-to-disc sealing at low pressure.
Forged material to comply with API6A PSL3Valve actuation with dedicated hydraulic actuator or ROV operable devices
Forged Body (PSL3-PSL4)
Forged Body (PSL3-PSL4)
Pressure Classes: 3000 psi /900-1500 lbs
Size: 1/2” to 36”
Pressure Classes: 5000 psi / 2500 lbs
Size: 1/2” to 30”
Pressure Classes: 7500 psi
Size: 1/2” to 22”
Pressure Classes: 10000 psi
Size: 1/2” to 9”
Pressure Classes: 15000 psi
Size: 1/2” to 9”
Cast Body (PSL2)
Cast Body (PSL2)
Pressure Classes: 3000 psi /900-1500 lbs
Size: 4” to 48”
Pressure Classes: 5000 psi / 2500 lbs
Size: 4” to 30”
Pressure Classes: 7500 psi
Size: 4” to 22”
Pressure Classes: 10000 psi
Size: 4” to 9”
TC Slabs Gate Valves
Standard Model
API6DSS, API6A, API17D design as requested.
Bi-directional sealing.
Floating spring energized metal-to-metal seats (tungsten carbide coating thickness 0,25 mm on seats and 0,4 mm on gate).
Non-elastomeric seals to avoid the risk of gradual degradation of the seals over their lifetime.
Full metal-to-metal sealing at any primary pressure boundary including valve stem at fail position with the option of double backseat to provide metal sealing at both open and close positions.
Downstream sealing with pressurized body cavity to assist fail safe stroke.
Forged material to comply with API6A PSL3.
Valve actuation with dedicated hydraulic actuator and ROV operable Gearbox.
Pressure Classes: 3000 psi /900-1500 lbs
Size: 1/2” to 1” 1.13/16” 1/16” 1/8” 4 1/16” 5 1/8” 7 1/16” 9” 11” 13 5/8”
Pressure Classes: 5000 psi / 2500 lbs
Size: 1/2” to 1” 1.13/16” 1/16” 1/8” 4 1/16” 5 1/8” 7 1/16” 9” 11” 13 5/8”
Pressure Classes: 7500 psi
Size: 1/2” to 1” 1.13/16” 1/16” 1/8” 4 1/16” 5 1/8” 7 1/16” 9” 11” 13 5/8”
Pressure Classes: 10000 psi
Size: 1/2” to 1” 1.13/16” 1/16” 1/8” 4 1/16” 5 1/8” 7 1/16” 9” 11” 13 5/8”
Pressure Classes: 15000 psi
Size: 1/2” to 1” 1.13/16” 1/16” 1/8” 4 1/16” 5 1/8”
TC Slabs Gate Valves
Standard Model
API6DSS, API6A, API17D design as requested.
Bi-directional sealing.
Floating spring energized metal-to-metal seats (tungsten carbide coating thickness 0,25 mm on seats and 0,4 mm on gate).
Non-elastomeric seals to avoid the risk of gradual degradation of the seals over their lifetime.
Full metal-to-metal sealing at any primary pressure boundary including valve stem at fail position with the option of double backseat to provide metal sealing at both open and close positions.
Downstream sealing with pressurized body cavity to assist fail safe stroke.
Forged material to comply with API6A PSL3.
Valve actuation with dedicated hydraulic actuator and ROV operable Gearbox.
Pressure Classes: 3000 psi /900-1500 lbs
Size: 1/2” to 1” 1.13/16” 1/16” 1/8” 4 1/16” 5 1/8” 7 1/16” 9” 11” 13 5/8”
Pressure Classes: 5000 psi / 2500 lbs
Size: 1/2” to 1” 1.13/16” 1/16” 1/8” 4 1/16” 5 1/8” 7 1/16” 9” 11” 13 5/8”
Pressure Classes: 7500 psi
Size: 1/2” to 1” 1.13/16” 1/16” 1/8” 4 1/16” 5 1/8” 7 1/16” 9” 11” 13 5/8”
Pressure Classes: 10000 psi
Size: 1/2” to 1” 1.13/16” 1/16” 1/8” 4 1/16” 5 1/8” 7 1/16” 9” 11” 13 5/8”
Pressure Classes: 15000 psi
Size: 1/2” to 1” 1.13/16” 1/16” 1/8” 4 1/16” 5 1/8”
Subsea Actuators
Subsea Linear Hydraulic
Actuators
About
API17D design as requested.
All models available double acting (DA) and spring return (FSC or FSO).
Hydraulic system assembled in clean environment (ISO8 clean room) and flushed to SAE AS4059 6B-F.
Visual and remote (continuous or limit switches) position indicator.
Balanced pressure cavities with local open or close compensation systems or common sea chest.
Linear DA
Linear DA
10 – 50 kN
50 – 100 kN
100 – 250 kN
250 – 500 kN
500 – 1000 kN
750 -1500 kN
Linear FSC/FSO
Linear FSC/FSO
10 – 50 kN
50 – 100 kN
100 – 250 kN
250 – 500 kN
500 – 1000 kN
Linear Mechanical
Linear Mechanical
10 – 50 kN
50 – 100 kN
100 – 250 kN
250 – 500 kN
500 – 1000 kN
750 -1500 kN
Subsea Quarter Turn Actuators
About
API17D design as requested.
All models available double acting (FAI) and spring return (FSC or FSO).
Range of mechanical or hydraulic override and indicator mechanisms.
Hydraulic system assembled in clean environment (ISO8 clean room) and flushed to SAE AS4059 6B-F.
Diver or ROV retrievable with provision of a connecting clutch system.
Visual and remote (continuous or limit switches) position indicator.
Balanced pressure cavities with open or close compensation systems.
R&P FAI
R&P FAI
1000-15000 Nm
20 – 70 kNm
50 – 150 kNm
150 – 200 kNm
200 – 500 kNm
R&P FSC/FSO
R&P FSC/FSO
1000-15000 Nm
20 – 70 kNm
50 – 150 kNm
150 – 200 kNm
HS FAI
HS FAI
1000-15000 Nm
20 – 70 kNm
50 – 150 kNm
150 – 200 kNm
200 – 500 kNm
HS FSC/FSO
HS FSC/FSO
1000-15000 Nm
20 – 70 kNm
50 – 150 kNm
150 – 200 kNm
Subsea Quarter Turn Actuators
About
API17D design as requested.
All models available double acting (FAI) and spring return (FSC or FSO).
Range of mechanical or hydraulic override and indicator mechanisms.
Hydraulic system assembled in clean environment (ISO8 clean room) and flushed to SAE AS4059 6B-F.
Diver or ROV retrievable with provision of a connecting clutch system.
Visual and remote (continuous or limit switches) position indicator.
Balanced pressure cavities with open or close compensation systems.
R&P FAI
R&P FAI
1000-15000 Nm
20 – 70 kNm
50 – 150 kNm
150 – 200 kNm
200 – 500 kNm
R&P FSC/FSO
R&P FSC/FSO
1000-15000 Nm
20 – 70 kNm
50 – 150 kNm
150 – 200 kNm
HS FAI
HS FAI
1000-15000 Nm
20 – 70 kNm
50 – 150 kNm
150 – 200 kNm
200 – 500 kNm
HS FSC/FSO
HS FSC/FSO
1000-15000 Nm
20 – 70 kNm
50 – 150 kNm
150 – 200 kNm
Who are we?
Call us!
(+47) 959 42 660
Address
Dalegata 137, 6518 Kristiansund
Norway, Europe
